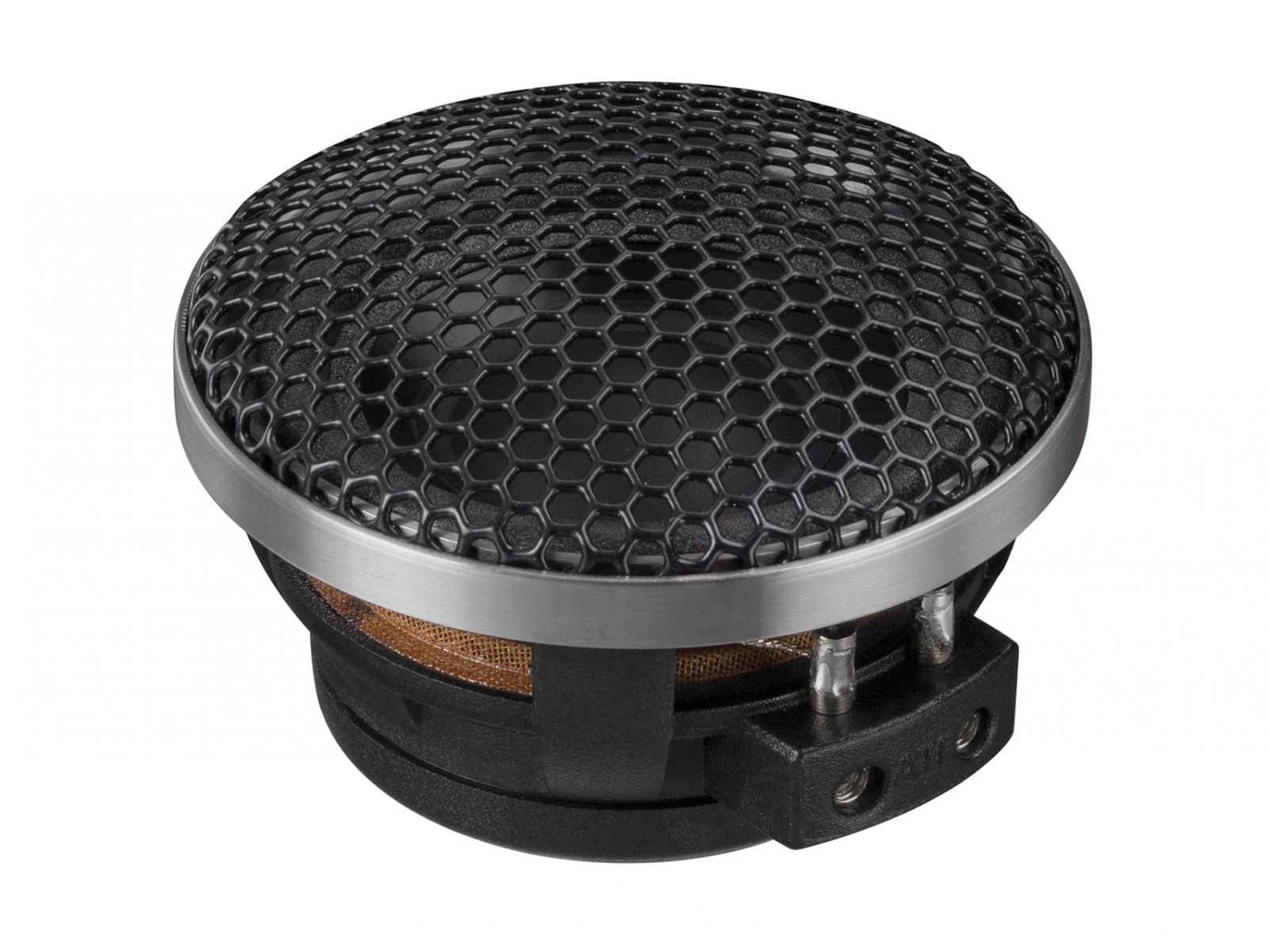

Brax Graphic GL2 2" Midrange Speakers
$1,088 Cash & Carry
Condition
Brand New
Category
Suitable For
All Models
Posted on: 07 May 2023 | Updated on : 07 May 2023
Merchant information
| Blk 5068 Ang Mo Kio Industrial Park 2 #01-1467/1469 S(569571) | ||
| 9am - 6pm (Mon - Sat) | ||
92286969
92216969
|
Ad information
Features
- Enormously broadband frequency response even off-axis – therefore ideal for the use as broadband speaker without additional tweeter
- Rigid aluminum cone for outstanding and natural midrange response
- Particularly clear and dynamic sound characteristics thanks to the rigid and lightweight aluminum cone
- Precisely machined neodymium magnet system for highest magnetic flux linearity
- 24 carat gold plated terminals for maximum conductivity
- Magnet system with threaded hole for hidden fastening from behind
- Sturdy protection grille for protecting the cone from damages
- Aerodynamically optimized basket
- Extremely compact dimensions ideal for installation in the A-pillar – outer diameter almost identical to tweeter BRAX GRAPHIC GL1
Technical data
- Power RMS / max. (P): 80 / 120 Watts
(highpass > 400 Hz at 24 dB/Oct.) - Impedance (Z): 4 Ω
- DC resistance (Re): 3.1 Ω
- Frequency response: 400 Hz - 20.000 Hz
- Resonance frequency (Fs): 165 Hz
- Mechanical Q factor (Qms): 8.90
- Electrical Q factor (Qes): 0.55
- Total Q factor (Qts): 0.52
- Compliance (Cms): 720 μm/N
- Equivalent air volume (Vas): 0.24 L
- Force factor (B*I): 2.6 Tm
- Efficiency 1 W / 1 m (SPL): 84 dB
- Cone area (Sd): 15 cm²
- Moving mass (Mms): 1.6 g
- Cone material: Aluminum cone
- Mechanical resistance (Rms): 0.13 kg/s
- Voice coil diameter (ø): 19 mm / 0,75"
- Voice coil winding height: 5 mm / 0.2"
- Max. linear excursion (Xmax): +/- 1.0 mm
- Outer diameter (ø): 60 mm / 2.36"
- Installation diameter (ø): 53 mm / 2.1"
- Installation depth: 26.8 mm / 1.1"
Recommended enclosure volumes
- Sealed box with minimum 250 ml net volume
Net volumes: Recommended DSP / amplifier settings
- 0.25 liter (System resonance: 200 Hz):
Crossover frequency: 600 Hz
Min. filter slope: 12 dB/Oct. - 0.5 liter (System resonance: 155 Hz):
Crossover frequency: 450 Hz
Min. filter slope: 12 dB/Oct. - 0.75 liter (System resonance: 140 Hz):
Crossover frequency: 300 Hz
Min. filter slope: 24 dB/Oct.
Note: The enclosure should always be filled with appropriate damping material.
