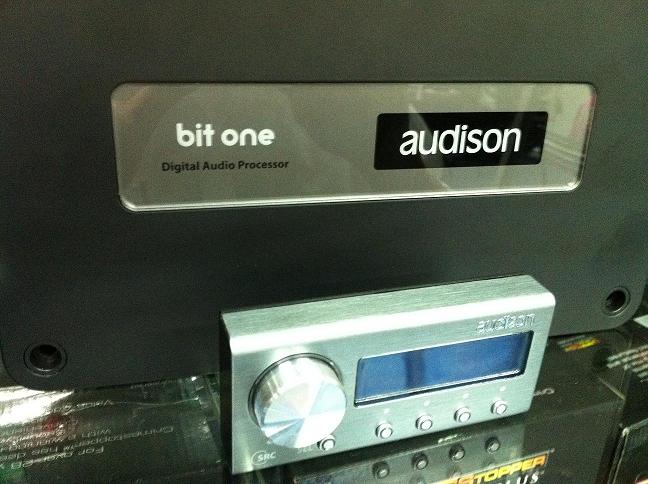

Audison Bit One Processor (With Digital Remote)
$1,300
Condition
Brand New
Suitable For
All Models
Posted on: 21 Jan 2021 | Updated on : 21 Jan 2021

Merchant information

50 Serangoon North Avenue 4 #01-18 First Centre S(555856)
10am - 8pm (Mon - Sat) 11am - 4pm (Sun & PHs)
65701138
97459950

Ad information

Brand New

Bit One Processor (With Digital Remote)





Bit One is a multi-function digital processor capable of interfacing with any analog and/or digital source, turning any ordinary system into one with very high-level performance.



Despite its compact size, the Bit One is equipped with a powerful, latest generation 266 MHz / 32 bit floating point DSP microprocessor, working in real time on all the functions of the most complete systems.



Managed and configured by a simple and intuitive computer software, it is possible to make adjustments to improve the signal through each phase of its path; from input to output.



Bit One - Signal Interface Processor



TECHNICAL SPECIFICATIONS:



Power supply

Voltage 11 ÷ 15 VDC

Idling current: 0.5 A

Switched off <0.04 mA

Remote IN voltage 7 ÷ 15 VDC (1 mA)

Remote OUT voltage 12 VDC (5 mA)

Distortion - THD @ 1 kHz, 1 V RMS Output 0.002 %

Bandwidth 4 ÷ 22 kHz

S/N ratio @ A weighted 102 dBA

Channel Separation (1 kHz / 10 kHz) 75 dB / 60 dB

Input sensitivity (Low Level Inputs) 0.13 ÷ 3.5 VRMS

Input sensitivity (High Level Inputs) 1.2 ÷ 32 VRMS

Max Output Levels 4.0 VRMS

Input impedance (Low Level Inputs) 24 kïƒ

Input impedance (High Level Inputs) 5 kïƒ

Inputs Low level (Pre In): Ch1÷Ch6, AUX1 L & R, AUX2 L & R

High Level (Spk IN): Ch1÷Ch8, Phone IN

Electrical and Optical S/PDIF(Max 192 kHz/24 bit)

Outputs Low level (Pre Amp Out): Ch1÷Ch8

Digital Out: AD Link (Ch1÷Ch8 S/PDIF)

Crossover Filter type 12 / 24 / 36 / 48 dB Linkwitz

6 / 12 / 18 / 24 / 30 / 36 / 42 / 48 dB Butterworth

Crossover Mode Hi Pass / Low Pass / Band Pass

Equalizer Filter type 31 Band, ISO 1/3 Oct, 20 Hz÷20 kHz

Equalizer Gain +/- 12 dB

Delay 0÷22 ms (748 cm / 294.5 inch)

Size: B (Base) x L (Lenght) x H (Height) mm/inch 225 x 150 x 32.3 / 8.85” x 5.90” x 1.27”

Weight kg/lb 1.345 / 2.965

Call now for enquiries or drop by our shop @ First Centre(Serangoon)!

Contact: 65701138

50 Serangoon North Avenue 4
#01-18
First Centre
S(555856)

Monday to Saturday: 10am - 8pm
Sunday and PHs: 11am - 4pm


Ad information

Brand New

Bit One Processor (With Digital Remote)





Bit One is a multi-function digital processor capable of interfacing with any analog and/or digital source, turning any ordinary system into one with very high-level performance.



Despite its compact size, the Bit One is equipped with a powerful, latest generation 266 MHz / 32 bit floating point DSP microprocessor, working in real time on all the functions of the most complete systems.



Managed and configured by a simple and intuitive computer software, it is possible to make adjustments to improve the signal through each phase of its path; from input to output.



Bit One - Signal Interface Processor



TECHNICAL SPECIFICATIONS:



Power supply

Voltage 11 ÷ 15 VDC

Idling current: 0.5 A

Switched off <0.04 mA

Remote IN voltage 7 ÷ 15 VDC (1 mA)

Remote OUT voltage 12 VDC (5 mA)

Distortion - THD @ 1 kHz, 1 V RMS Output 0.002 %

Bandwidth 4 ÷ 22 kHz

S/N ratio @ A weighted 102 dBA

Channel Separation (1 kHz / 10 kHz) 75 dB / 60 dB

Input sensitivity (Low Level Inputs) 0.13 ÷ 3.5 VRMS

Input sensitivity (High Level Inputs) 1.2 ÷ 32 VRMS

Max Output Levels 4.0 VRMS

Input impedance (Low Level Inputs) 24 kïƒ

Input impedance (High Level Inputs) 5 kïƒ

Inputs Low level (Pre In): Ch1÷Ch6, AUX1 L & R, AUX2 L & R

High Level (Spk IN): Ch1÷Ch8, Phone IN

Electrical and Optical S/PDIF(Max 192 kHz/24 bit)

Outputs Low level (Pre Amp Out): Ch1÷Ch8

Digital Out: AD Link (Ch1÷Ch8 S/PDIF)

Crossover Filter type 12 / 24 / 36 / 48 dB Linkwitz

6 / 12 / 18 / 24 / 30 / 36 / 42 / 48 dB Butterworth

Crossover Mode Hi Pass / Low Pass / Band Pass

Equalizer Filter type 31 Band, ISO 1/3 Oct, 20 Hz÷20 kHz

Equalizer Gain +/- 12 dB

Delay 0÷22 ms (748 cm / 294.5 inch)

Size: B (Base) x L (Lenght) x H (Height) mm/inch 225 x 150 x 32.3 / 8.85” x 5.90” x 1.27”

Weight kg/lb 1.345 / 2.965

Merchant information

50 Serangoon North Avenue 4 #01-18First Centre S(555856)
10am - 8pm (Mon - Sat) 11am - 4pm (Sun & PHs)
65701138 / 97459950
Posted on: 21 Jan 2021 | Updated on : 21 Jan 2021

Features & specs

The bit One is a multi-function digital processor capable of interfacing with any analog and/or digital source, turning any ordinary system into one with very high-level performance.

Despite its compact size, the bit One is equipped with a powerful, latest generation 266 MHz / 32 bit floating point DSP microprocessor, working in real time on all the functions of the most complete systems.

Managed and configured by a simple and intuitive computer software, it is possible to make adjustments to improve the signal through each phase of its path; from input to output.

Specifications

Power supply

  • Voltage 11 ÷ 15 VDC
  • Idling current 0.45 A
  • Switched off without DRC
  • Switched off with DRC
  • Remote IN voltage 7 ÷ 15 VDC (1.3 mA)
  • Remote OUT voltage (Bit One) 12 VDC (20 mA)
  • Remote OUT voltage (Bit One.1) 12 VDC (130 mA)


Signal stage

  • Distortion - THD @ 1 kHz, 1 VRMS Output 0.002 %
  • Bandwidth @ -3 dB 4.5 ÷ 21k Hz
  • S/N ratio @ A weighted
  • Digital Input 112 dB
  • Master Input 96.5 dB
  • AUX Input 100 dB
  • Channel Separation @ 1 kHz 77 dB
  • Input sensitivity (Pre In) 0.3 ÷ 5 V
  • Input sensitivity (Speaker In) 1.2 ÷ 20 V
  • Input impedance (Pre In) 20 kΩ
  • Input impedance (Speaker In) 5 kΩ
  • Max Output Level (RMS) @ 0.1% THD 4 V


Input stage

  • Low level (Pre) Ch1÷Ch6, AUX1 L/R, AUX2 L/R
  • High Level (Spk) Ch1÷Ch8, Phone IN
  • Digital Coaxial, Optical (S/PDIF Max 48 kHz/24 bit)


Output stage

  • Low level (Pre) Ch1÷Ch8
  • Digital ADLink (Ch1÷Ch8 S/PDIF)


Connection

  • From / To Personal Computer 1 x USB / B (2.0)
  • To Audison Electronics 2 x ACLink control bus
  • Crossover N. 8 (one each output channel)
  • Filter type Full / High Pass / Low Pass / Band Pass
  • Filter mode and slope Linkwitz @ 12 / 24 / 36 / 48 dB
  • Butterworth @ 6 / 12 / 18 / 24 / 30 / 36 / 42 / 48 dB
  • Crossover Frequency 70 steps @ 10 ÷ 20k Hz
  • Phase control 0° / 180°


Equalizer

  • On High Level Inputs (Speaker In) Automatic De-equalization
  • On AUX Inputs N.4 x Graphic: ±12 dB @ 31 Band, ISO 1/3 Oct, 20 ÷ 20k Hz
  • On Outputs N.8 x Graphic: ±12 dB @ 31 Band, ISO 1/3 Oct, 20 ÷ 20k Hz
  • Dynamic Equalization Self-adjusting System between low and high listening levels


Time Alignment

  • Distance 2.8 ÷ 748 cm / 1.1 ÷ 294.5 inches
  • Delay 0 ÷ 22 ms
  • Step 0.08 ms, 2.8 cm, 1.1 inch


Size

  • W (Width) x H (Height) x D (Depth) mm/inch 150 x 32.3 x 225 / 5.90" x 1.27" x 8.85"
  • Weight kg/lb 1,345 / 2.965
Consumer Reviews
What you get for the price is is simply unreal. It will sum and de-EQ your factory unit, provides 8 channels of completely flexible output in terms of crossover assignment, the onboard amp is capable of a reasonable amount of output, acceptable for most end users (outside of a subwoofer) and the auto-tune is excellent, for an auto tune. I have no doubt that it's possible to do better, but I don't have the time or equipment or skills to approach what the Audison Bit One does.
Reviewed by Gekgecko
This is a multi-function digital processor capable of interfacing with any analog and/or digital source, turning any ordinary system into one with very high-level performance.
Reviewed by Remy_lee
