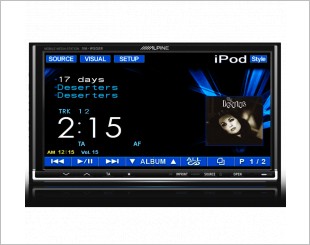

Alpine IVA-W502E DVD Player

- Cash & Carry

Condition

Very Good [4/5]

Seller information

Seller’s contact information has been removed as item has already been sold

Ad information

Features7” WVGA Touch Screen50W x 4 High Power AmpDVD-R/-RW/MP3/AAC/WMA/DivXUSB Connection for iPodiPod Video Content Playback3 Preouts / 2 Preins for PXA-H100IMPRINT Ready (Requires PXA-H100)Bluetooth Ready24 Bit DACVisual Enhancement SystemRemote Control ReadyKCU-450IV iPod Video Lead Included

Specifications

Monitor Section

Screen Size: 7.0"LCD Type: Transparent type TN LCDOperation System: TFT active matrixNumber of Picture Elements: 1,152,000 pcs. (800 × 3 × 480)Effective Number of Picture Elements: 99% or moreIllumination System: LED

FM Tuner Section

Tuning Range: 87.5 – 108.0 MHzMono Usable Sensitivity: 9 dBf (0.8 μV/75 ohms)50 dB Quieting Sensitivity: 9 dBf (1.3 μV/75 ohms)Alternate Channel Selectivity: 80 dBSignal-to-Noise Ratio: 60 dBStereo Separation: 30 dBCapture Ratio: 2.0 dB

AM Tuner Section

Tuning Range: 531 – 1,602 kHzUsable Sensitivity: 22.5 μV/27 dBf

USB Section

USB requirements: USB 1.1/2.0Max. Power Consumption: 500mAUSB Class: USB (Play From Device)/USB(Mass Storage Class)File System: FAT12/16/32MP3 Decoding: MPEG-1/2 AUDIO Layer-3WMA Decoding: Windows Media™ AudioAAC Decoding: AAC-LC format “.m4a” fileNumber of Channels: 2-Channel (Stereo)Frequency Response*: 5-20,000 Hz (±1 dB)Total Harmonic Distortion: 0.008% (at 1 kHz)Dynamic Range: 95 dB (at 1 kHz)Signal-to-Noise Ratio: 105 dBChannel Separation: 85 dB (at 1 kHz)

*Frequency response may differ depending on the encoder

software/bit rate.

CD/DVD Section

Frequency Response: 5 – 20,000 HzWow & Flutter (% WRMS): Below measurable limitsTotal Harmonic Distortion: 0.02% (at 1 kHz)Dynamic Range: 95 dB (at 1 kHz)Channel Separation: 65 dB (at 1 kHz)Signal system: NTSC / PALHorizontal resolution: 500 lines or greaterVideo output level: 1Vp-p (75 ohms)Video S/N ratio: DVD: 60 dBAudio S/N ratio: More than 95 dB

General

Power Requirement: 14.4 V DC (11–16 V allowable)Operating temperature: +32°F to +113°F (0°C to + 45°C)Maximum Power Output: 50 W × 4Output Voltage: 2,000 mV/10k ohmsBass: ±14 dB at 60 HzTreble: ±14 dB at 10 kHzWeight: 2.7 kg (5 lbs. 15 oz)

Audio output level

Preout (Front, Rear): 2V/10k ohms (max.)Preout (Subwoofer): 2V/10k ohms (max.)AUX OUT: 1.2V/10k ohmsAi-NET: 850 mV

Ad information

Specifications

Monitor Section

FM Tuner Section

AM Tuner Section

Tuning Range: 531 – 1,602 kHzUsable Sensitivity: 22.5 μV/27 dBf

USB Section

*Frequency response may differ depending on the encoder

software/bit rate.

CD/DVD Section

General

Audio output level

Preout (Front, Rear): 2V/10k ohms (max.)Preout (Subwoofer): 2V/10k ohms (max.)AUX OUT: 1.2V/10k ohmsAi-NET: 850 mV

Seller information

Seller’s contact information has been removed as item has already been sold

Message Seller

Posted on: 26 Jun 2015 | Updated on : 15 Aug 2015

Report Error

Features & specs

The IVA-W502E is Alpine’s most advanced mobile media station ever. Extremely versatile – it’s ready to playback the latest media formats including video and audio content direct from your iPod. Even more impressive, the brilliant 7” high resolution WVGA display delivers colourful, vibrant and true-to-life images. The enhanced graphic user interface provides selectable viewing modes, as well as iPod album artwork.

The included* Bluetooth module gives you hands-free operation of many Bluetooth enabled phones. To create the ultimate AV experience, connect the powerful PXA-H100 processor to realize the accuracy and stunning clarity of IMPRINT sound.

Product Information

Dual Display ModesOur all new user interface provides twoconvenient operating modes, giving you achoice of what you want to see and how much information you want displayed. The Basic modeshows you current song info and playing time,while the Pro mode also shows the upcoming five songs, allowing you to easily jump ahead
Bright, Brilliant DisplayThe WVGA display gives you bright, high-resolution, high-quality video display, and even features Visual Enhancement for greater clarity in excessively dark or light movie scenes.
Bring your iPod along for the ride and enjoy your portablemusic collection on the road with the full clarity and powerof your audio system. (KCU-450iV USB cable required)
With the optional PXA-H100 IMPRINTSound Processor, you can automatically fix in-car acoustical problems, or use the manual tuning controls to preciselycorrect and enhance the sound yourself. The result? Authentic music reproduction virtually identical to the original.

Features

7" WVGA Touch Screen display
50W x 4 High Power Amp
DVD+-R/+-RW/MP3/AAC/WMA/DivX Playback
USB Connection for iPod
iPod Video Content Play back
3 Preouts / 2 Preins for PXA-H100
IMPRINT Ready (Requires PXA-H100)
Bluetooth Ready with audio streaming
24 Bit DAC
Visual Enhancement System
Remote Control Ready
1 AUX input/ 1 AUX output
DVD-Audio 2ch down-mix

Dimensions

DIN Size: 2
Chassis Size (W x H x D) mm: 178mm x 100mm x 160.5mm

Monitor Section

Screen Size: 7.0"
LCD Type: Transparent type TN LCD
Operation System: TFT active matrix
Number of Picture Elements: 1,152,000 pcs. (800 × 3 × 480)
Effective Number of Picture Elements: 99% or more
Illumination System: LED

General

Power Requirement: 14.4 V DC(11-16 V allowable)
Operating temperature: +32°F to +113°F(0°C to + 45°C)
Maximum Power Output: 50 W × 4 Output Voltage: 2,000 mV/10k ohms
Bass: ±14 dB at 60 Hz
Treble: ±14 dB at 10 kHz
Weight: 2.7 kg (5 lbs. 15 oz)
Audio output level Preout (Front, Rear): 2V/10k ohms (max.) Preout (Subwoofer): 2V/10k ohms (max.)
AUX OUT: 1.2V/10k ohms
Ai-NET: 850 mV

Consumer Reviews

Highly sought after Competition level DVD Headunit

Finally found a good priced used set with external USB cable. First thought, the design, build and finish, audio quality is all top notch giving Alpine the leader in Head unit reputation. Programs were easy to use, screen was high quality WVGA LED screen, button touch was of quality plastic, a lot of features, especially liked it 2nd background style with a microphone similar to The Voice. The boot up and disc loading is one of the fastest and with an aftermark steering wheel control module, it integrated well. Sound quality is one of it's strongest point, this HU was highly sought after by competitors and audiophile for its audio quality, features and value for money. (Mcintosh, Mark Levison) Hidden features will require a processor to unlock to its full potential for competition level. Best buy if you can find a reasonable used one, mine was in mint condition and shall port it over to my next car if possible.

Reviewed by Jaspok

A good all rounder Multi Media Station (MMS)

This MMS has quite a no. of features. I particularly like the Dolby Movie and Music setting (with the external audio processor PXA-H700 or H700). The range of frequencies are crisp clear when coupled with micro precision speakers, tweeters and a sub. I have the IPod connectivity and that makes playing music from the IPod touch a breeze. It charges my IPhone too. The touch screen makes it easy to navigate through the setup and source. Playing DVD is just a few clicks away. The installer was also able to connect the search, mute, volume functions to my steering control and makes the daily fiddling much easier.

Reviewed by Tommisan

View All "3 Reviews" for Alpine IVA-W502E
